Product Details

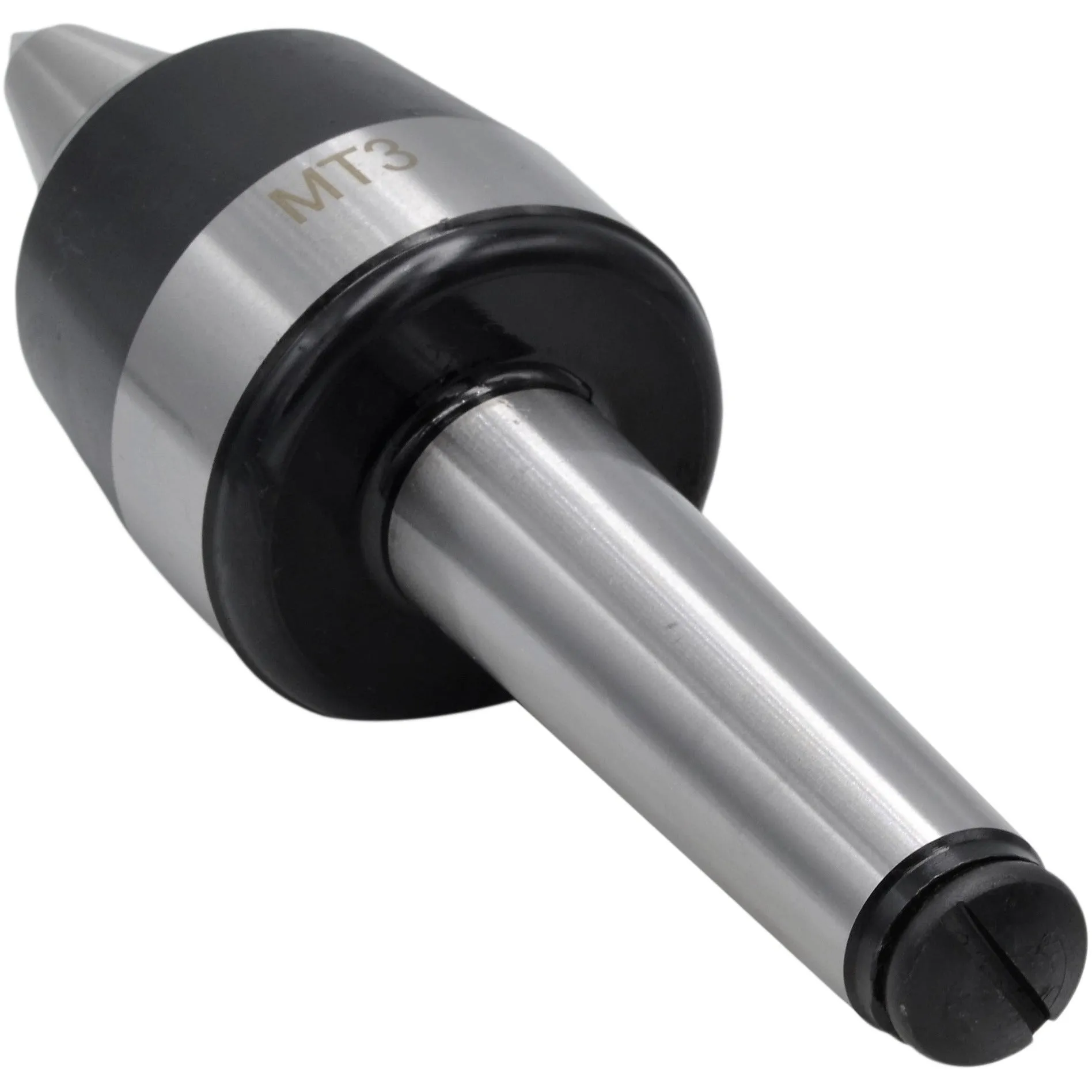

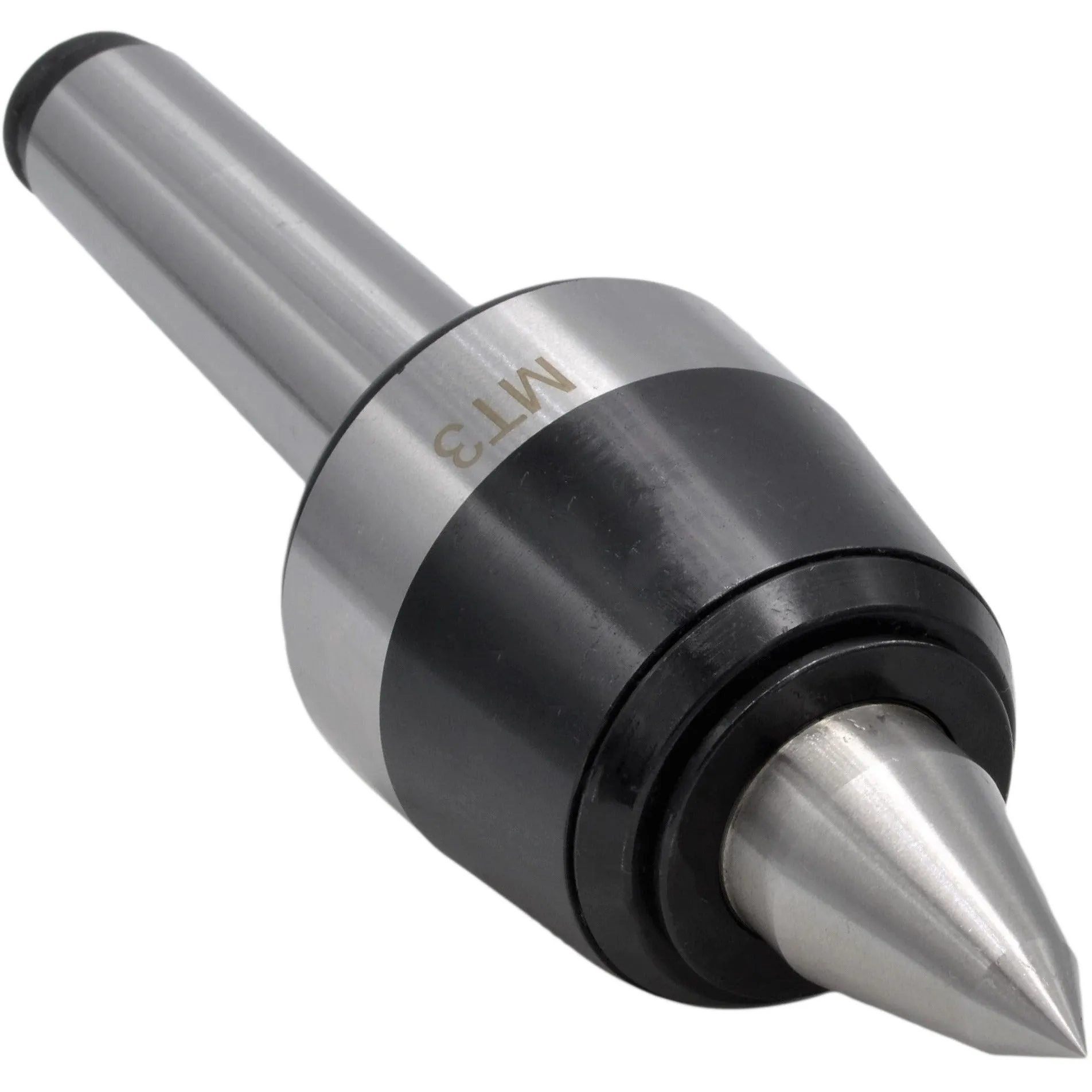

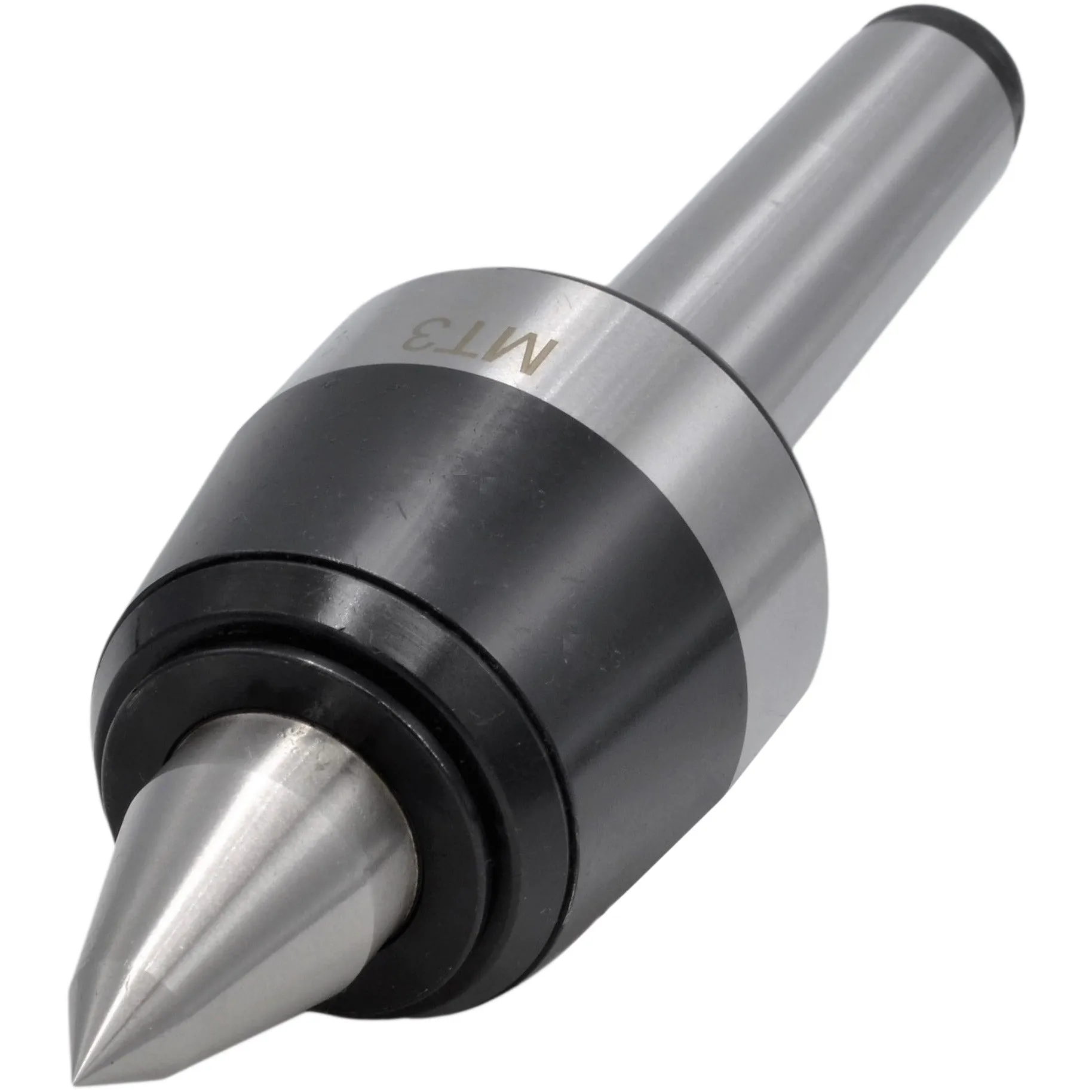

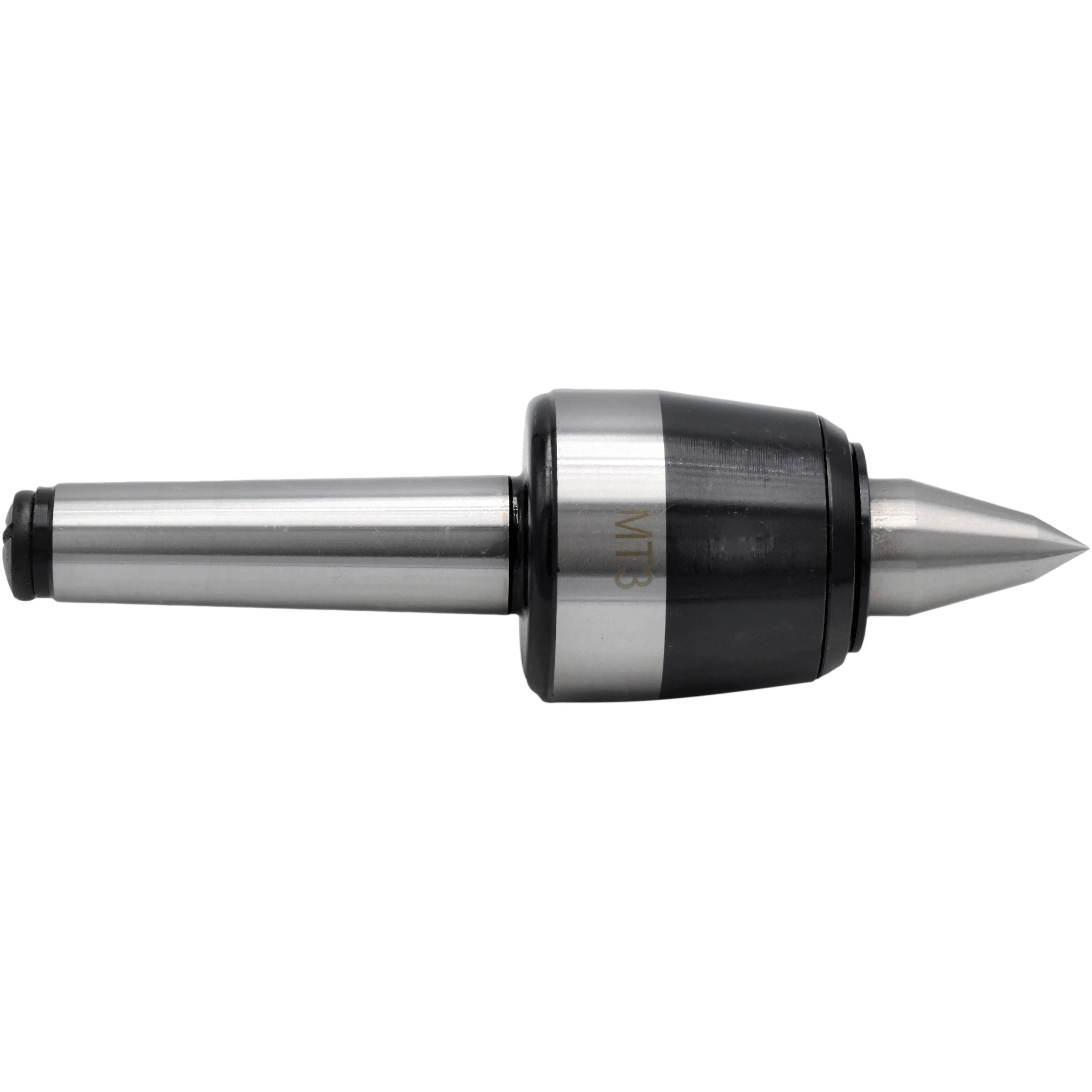

Morse Taper 3 Extended Nose Precision High Speed Live Centre

Designed for medium high speed light load lathes.This centre is composed of a double row angular contact ball bearing, a thrust ball bearing and a needle bearing

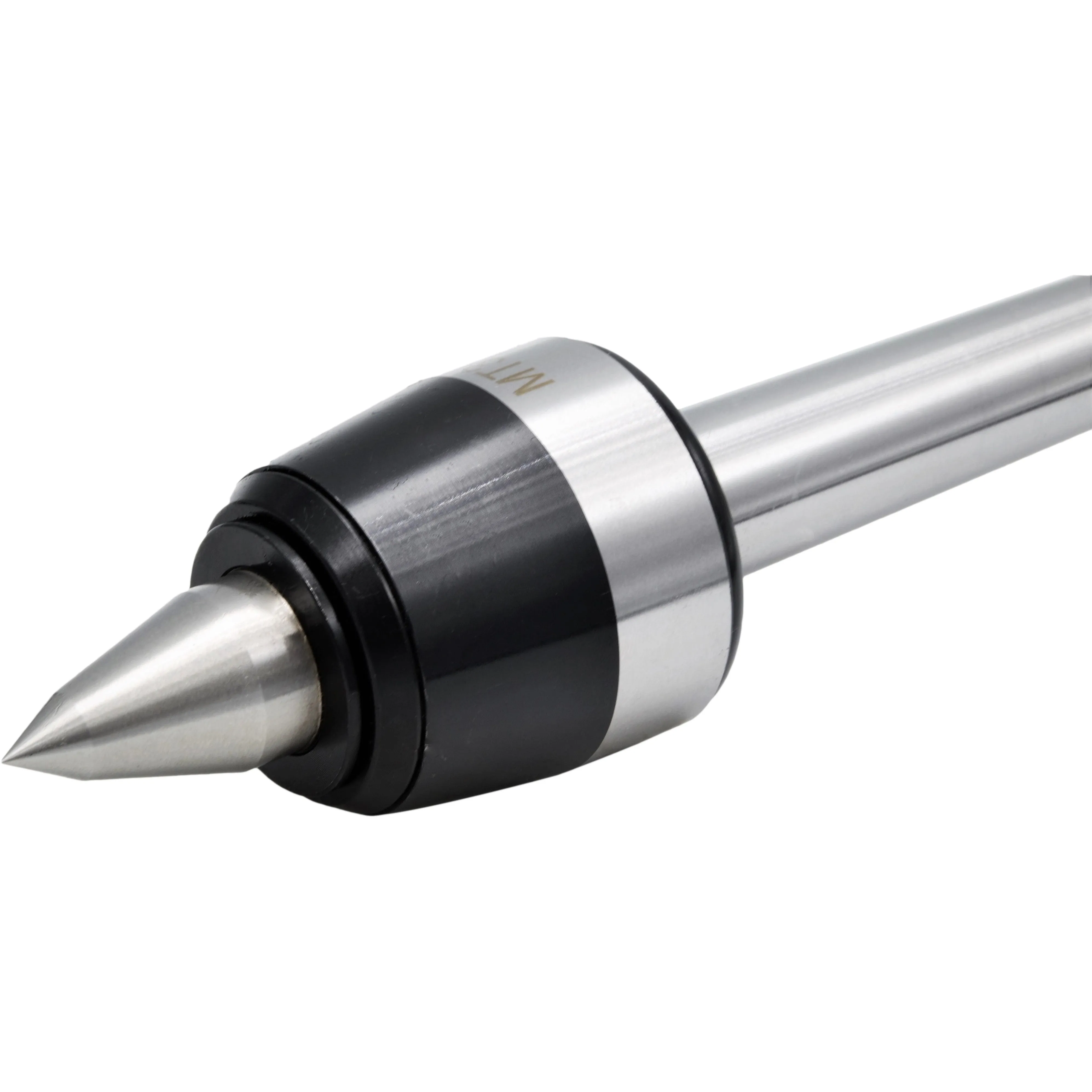

Triple ball bearing design incorporating a dust seal limiting ingress from coolant and debris thereby extending tool life.Expanding on that a skeleton seal ring is fitted to further protect the interior components from external ingress. With an extended mandrel head it is perfect for processing small parts or end faces and improves overall efficiency.

Shank Size: Morse taper 3
Part No:DJ-LO8026/MT3
Max RPM: 4000
Accuracy: 0.005 mm
Load Capacity: 500 kg
60 Degree Centre Point
Triple bearing

M12 Drawbar thread with cap

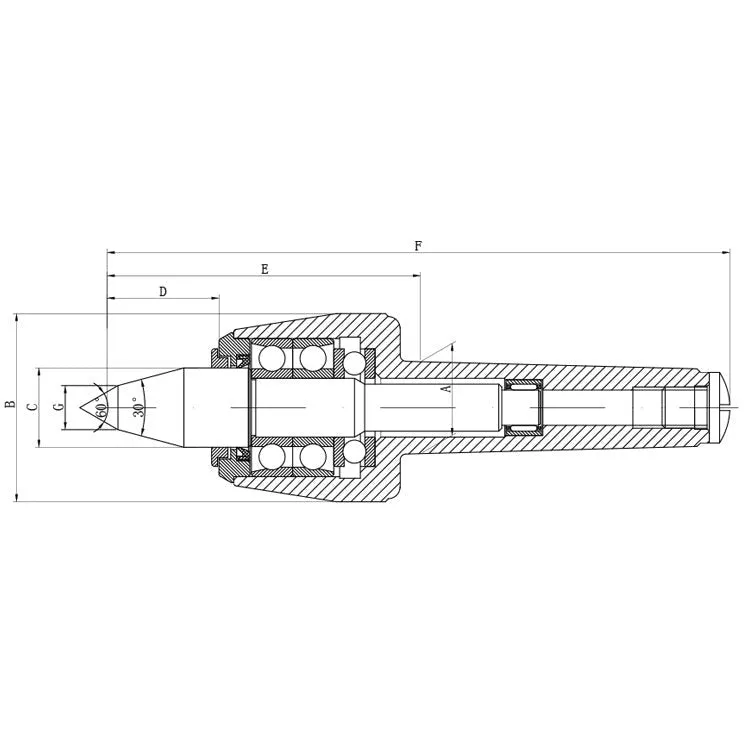

Model	A(ø:mm)	B(ø:mm)	C(ø:mm)	D(mm)	E(mm)	F(mm)	G(ø:mm)
MT2	17.780	42	16	29	76	140	8
MT3	23.825	54	24	41	103	184	12
MT4	31.267	64	28	48	120	223	15
MT5	44.399	69	32	55	128	258	18
